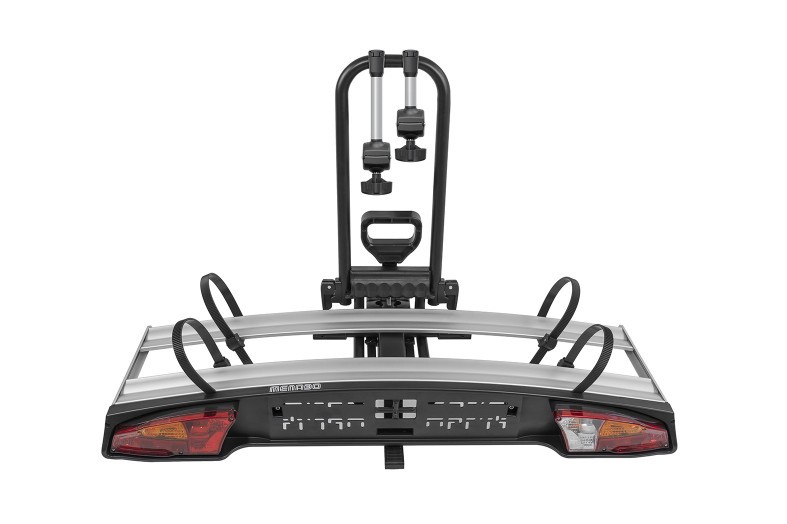

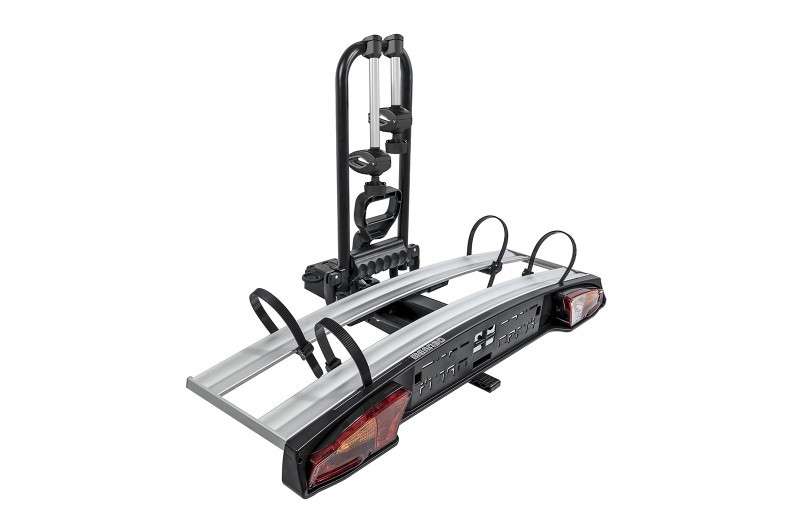

Towbar-mounted bike carrier with quick-release system, solid steel frame and large aluminum wheel rails.
Also equipped with a pedal-operated tilt system and anti-theft system.
Also suitable for electric bikes and fat bikes.
Technical specifications:
Permitted frame cross-section (round shape): min: 23mm/1" - max: 75mm/3"
Permitted frame cross-section (non-round shape; see attached figure): min: 30x50mm/ 1.2x2" max: 50x75mm/ 2x3"
Compatible wheel diameter: min 22" - max 29"
Max tire width: max 110mm / 4.3"
Max wheelbase: max 1260mm / 49.6"
The carrier can be locked to the towbar: yes
The bicycle can be locked to the carrier: no
Quick release to the towbar: yes
Tail weight: 15.9 kg
Max load capacity: 60 kg
|
| Unit: |
piece |
| Max number of bikes: |
2 |
| Adjustable angle?: |
yes |
| Maximum load/bike: |
30 kg |
| eBike Ready: |
yes |
|
