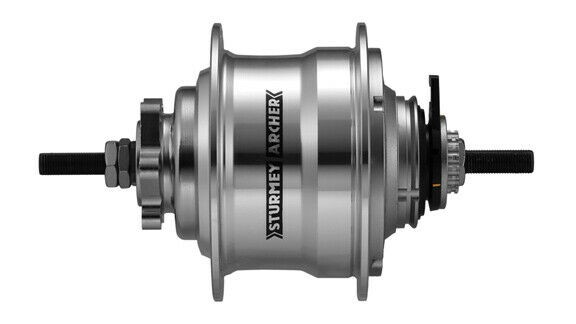

5 Speed Disc Brake Rear Hub
FEATURES
• 5-Speed internal gear hub with gear ratio of 243%
• Gear steps of 25%, 25%, 25% and 25%
• Rotary gear selector without protrusions outside the frame
• Designed for heavy duty use
• 6061 Aluminium hub shell
• Available with 32 or 36 spoke holes
• Compatible with 16 to 22 teeth sprocket
• Anodised alloy or black finish
• Weight - 2000g
Gear Ratio
• Overall Range - 243%
• Gear 1 - 64% (Gear 2 - 25%)
• Gear 2 - 80% (Gear 3 - 25%)
• Gear 3 - 100% (Direct Drive)
• Gear 4 - 125% (Gear 3 + 25%)
• Gear 5 - 156% (Gear 4 + 25%)
|
| Unit: |
sets |
| Colour: |
silver |
| Speeds: |
5 speed |
| Chain sprockets mounting: |
3 notch mounting |
| Brake compatibility: |
tárcsafék [EN] |
| Complete set: |
yes |
| Holes: |
36 |
| Over Locknut Distance (O.L.D.): |
135 mm |
| Accessories: |
fogaskerék, Shifter cable set, szerelék, váltókar |
| Flange distance (left): |
40 mm |
| Flange distance (right): |
35 mm |
| Flange PCD (right): |
96 mm |
| Flange PCD (left): |
96 mm |
|
