Down Swing
48-38-28T
Top pull
Improved shifting performance
Easy assembly feature
Smooth, light and reliable shifting performance

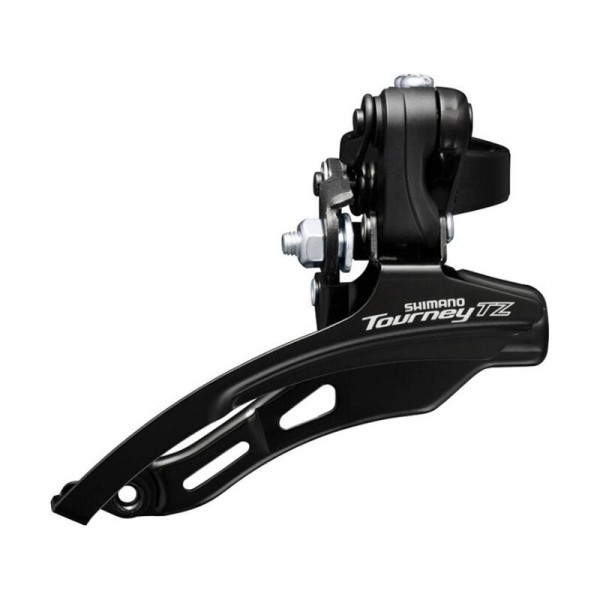

MODEL NO FD-TZ510-DS6
SERIES SHIMANO TOURNEY TZ500 Series
Color Series color, -
Action_Down Swing X
Applicable Top-Mid tooth difference 10T
Cable route type_Down-Pull exclusive X
Cable route type_Top-Pull exclusive X
Chain line (mm) 47.5
Chain stay angle 66-69
Compatible chain HG-UG 7/6-speed
Mount_Clamp Band_28.6mm X
Mount_Clamp Band_31.8mm X
Speeds_Front 3 (friction)
Speeds_Rear 7/6
Top gear teeth 48T
Total capacity 20T
|
| Unit: |
piece |
| Outer chainring max. teeth number: |
48T |
| Number of chainrings: |
3 |
| Number of gears: |
6 sebességes, 7 speed |
| Shifting actuation: |
mechanical |
| Mounting type: |
clamp type |
| Total capacity: |
20 T |
| Max-middle difference: |
10T |
| Chain Stay Angle: |
66-69° |
| Colour: |
black |
| Clamp position: |
Felsőbilincses |
| Cable pull: |
top pull |
| Első váltó rögzítése: |
bilincses rögzítés |
|
