•Wheel Size:27.5+/29"
•Weight: 1885g (27.5+/29")
•Offset: 44 (27.5+/29")
•Ride Height: 485-525mm (27.5+/29")
•Travel: 80-120mm Internally adjustable in 10mm increments
•Spring: TS Air
•Compression Damping: Kwik Toggle
•Rebound Damping: in-leg adjustable TPC
•Adjustments: Air, Rebound, Lockout
•Steerer: 1.5" Tapered
•Crown: Forged Aluminum, Hollow Bore Matte Black
•Leg Diameter: 32mm
•Leg Material: 6000- Series Straight Wall Aluminum
•Brake: Post Mount 160mm (203mm Max)
•Axle: 15mm x110mm Hexlock
•Max Tire Size: 77mm (27.5+), 68mm (29)

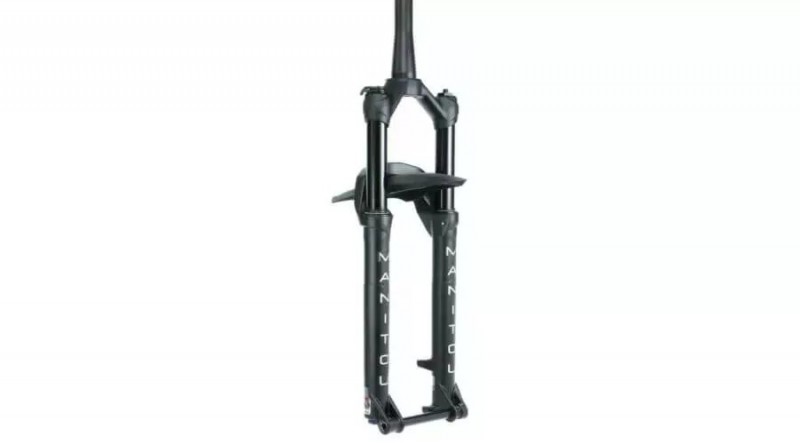

•Options: QR15, Fender Kit
•E-Pac: No
|
| Unit: |
piece |
| Over Locknut Distance (O.L.D.): |
110 mm |
| Steerer tube: |
Tapered [EN] |
| Rebound system: |
yes |
| Compatible wheelsize: |
29" (ETRTO: 622 mm) |
| Fork lockout: |
from fork crown |
| Brake compatibility: |
tárcsafék [EN] |
| Intended use: |
MTB |
| Axle type: |
15 mm átütőtengely |
| Suspension type: |
air spring |
| Fork|Crown: |
simple crown |
| Steerer tube material: |
Aluminium |
| Stanchion diameter: |
32 mm |
|
